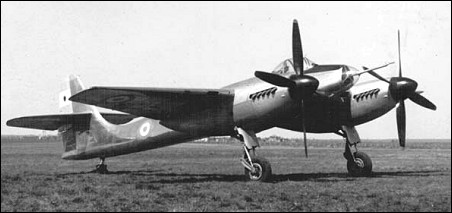

| One prototype only.
| CREW | 1 |
| ENGINE | 2 x 850hp Rolls-Royce Merlin 604 |
| WEIGHTS |
| Take-off weight | 7600 kg | 16755 lb |
| Empty weight | 6208 kg | 13686 lb |
| DIMENSIONS |
| Wingspan | 15.00 m | 49 ft 3 in |
| Length | 11.52 m | 38 ft 10 in |
| Height | 5.16 m | 17 ft 11 in |
| Wing area | 35.32 m2 | 380.18 sq ft |
| PERFORMANCE |
| Max. speed | 740 km/h | 460 mph |
| Cruise speed | 500 km/h | 311 mph |
| Ceiling | 8000 m | 26250 ft |
| Range | 2700 km | 1678 miles |
| ARMAMENT | 6 x 20mm cannon, 250kg of bombs |
| ubaTaeCJ, e-mail, 21.02.2025 18:59 20 reply | | Paul Scott, 12.03.2017 22:56 Wikipedia states 1800 HP Merlins confirmed reply |
| THEBATTLEMASTER, 13.12.2012 22:03 Could have been a nice plane. reply |
| Paul Scott, e-mail, 21.05.2012 19:13 A lot like the Welkin as well as the Hornet. reply | |
| | Peters Leandro, e-mail, 28.02.2011 23:18 There is an error, are 1850 hp motor. This can be seen in the four blades of the thruster. Even the first R & R Merlin had 850 hp. Greetings reply | | tony, e-mail, 21.11.2010 23:30 Re: 460 mph with a pair of 850 hp "Merlin" engines? Impossible. Now, those engines may have had 1850 hp, but I never heard of any Merlin with only 850. (1850 is itself a bit of a stretch but not impossible, and would have been enough to swing those 4-blade props fast enough to hit off over 400 mph) reply | | Tony French, e-mail, 16.07.2010 22:26 850hp Merlin ? 460 mph on two 850hp motors ? Unlikely reply | | Karl, e-mail, 12.08.2010 14:59 This plane was similar in koncept like De Havvilland Hornet and had Merlin 130 engines of 2000 HP each. reply |
|
